PCI Express x4 Quad Port 802.3at PoE+ GigE Vision Frame Grabber Card (Based on Intel I350)
The LRES2004PT-POE is a kind of high-performance image capture card,
independently researched and designed by LR-LINK. The cards supports 4 independent 10/100/1000BaseT(X) 802.3af & 802.3at (PoE) compliant Ethernet ports,
With 12 VDC AT/ATX power input, the LRES2004PT-POE can boost then provides up to 25.5 watts at 48 VDC power to maximum 2 x PoE ports on each module.

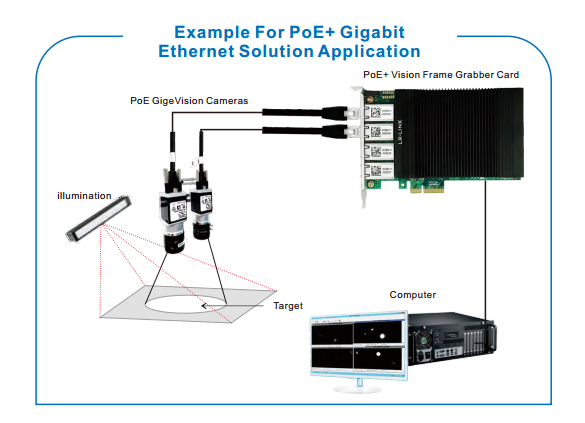

It allows power to be supplied to connected devices, such as PoE-based Gigabit cameras in machine vision inspection systems,
without the need to use separate PoE injectors for those applications.
With its 2.25 KV isolation protection, and overload current/voltage protection on LAN ports, the LRES2004PT-POE is ideally designed for scientific and medical research Instrumentations, Machine Vision,
Gigabit Ethernet surveillance IP cameras in intelligent transportation systems,
which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
